Path Tracing with ADRT

On this page

ADRT (the Advanced Distributed Ray Tracer) is BRL-CAD’s triangle-based rendering engine. Alongside the usual scanline shaders it carries a Monte-Carlo path tracer that computes global illumination — soft ambient light, contact shadows, and diffuse color bleeding — by tracing many random light paths per pixel. This article explains how ADRT is put together and walks through producing path-traced images with the standalone adrt command, comparing the result to `rt’s ambient-occlusion lighting.

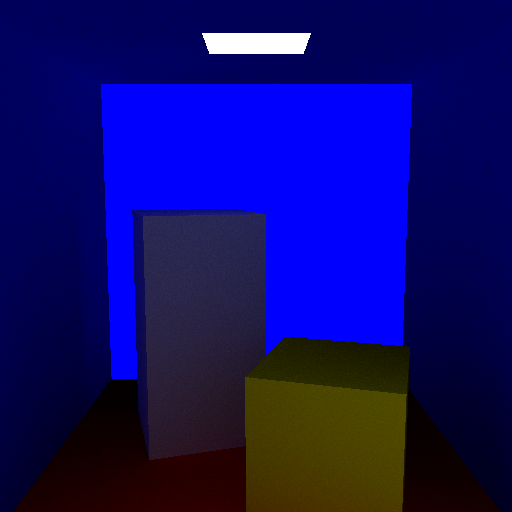

Cornell box path traced
Figure 1. Path-traced global illumination: the Cornell box rendered with adrt -m path

How ADRT works

ADRT is layered on top of BRL-CAD’s TIE (Triangle Intersection Engine), the same SIMD-friendly kd-tree ray tracer used by rtwizard, `nirt’s mesh mode, and the geometry viewers. Because TIE only intersects triangles, ADRT first tessellates geometry:

  • Bags-of-triangles (BoT) are handed to TIE directly.

  • Every other solid (CSG primitives, NMG, etc.) is tessellated to triangles as the database tree is walked. Region colors are carried onto the resulting meshes, and regions whose material shader is a light source (the classic light shader or an OSL emitter) are marked emissive.

Rendering itself lives in librender (src/adrt/librender), a small library of interchangeable shaders selected by name:

path

Monte-Carlo path tracer (global illumination)

phong

Direct Phong lighting from the eye

normal

Surface normals encoded as RGB

depth

Camera-space depth

flat

Flat region color

component, cut, flos, grid, spall, surfel

Analysis shaders

Several front ends drive that library:

  • adrt — a single-process, headless renderer that writes an image file. This is the tool used throughout this article.

  • isst — an interactive Tcl/Tk + OpenGL viewer for real-time fly-throughs.

  • adrt_master / adrt_slave — a networked master/worker pair (the "distributed" in ADRT) that farms tiles out to compute nodes for an external observer.

Rendering a path-traced image

The adrt command loads a .g database, frames the requested objects, renders one frame, and writes the image (the extension selects the format):

adrt [options] model.g object [object ...]

-o file

Output image; extension picks the format (default adrt.png)

-s N

Square image size in pixels (default 512); or -w/-n for width/height

-m mode

Shader: path, phong, normal, depth, flat (default path)

-H N

Path-tracer samples per pixel (default 32) — more samples, less noise

-a / -e

View azimuth / elevation in degrees (default 35 / 25)

-E x,y,z

Explicit eye point in model units (overrides -a/-e)

-L x,y,z

Explicit look-at point (default: model center)

-p fov

Perspective half-angle in degrees (default 25)

-C r/g/b

Environment/sky color, 0-255 (default 230/237/255)

-P N

Render threads (default: all CPUs)

A first render of the sample toy jeep:

adrt -s 512 -H 256 -a 35 -e 25 -o toyjeep.png toyjeep.g all

adrt reports the triangle count, load time, and render time, then writes the PNG. The camera is a perspective camera aimed at the model center; -a/-e orbit it and -p sets the field of view. For scenes that are not simply oriented — an enclosed, Y-up Cornell box, for instance — give an explicit eye and look-at point instead:

adrt -s 512 -H 512 -E 278,370.9,-454 -L 278,274,279 -p 25 \
     -o cornell.png cornell-kunigami.g all.g

The environment and ambient light

Rays that leave the scene without hitting anything pick up light from a built-in environment: a vertical gradient of the sky color, full strength overhead and dimming toward the ground. This "overcast sky" is what illuminates open scenes. With diffuse surfaces it produces physically-based ambient occlusion for free — up-facing faces catch the bright sky while crevices and undersides fall into shadow — and it also paints the graduated background. -C tunes the sky color and brightness (a brighter sky lifts flat, light-colored surfaces).

Enclosed scenes such as the Cornell box see no sky; there, the emissive light region is the only source, and the interior is lit entirely by bounced, indirect light.

Path tracing versus rt ambient occlusion

rt, BRL-CAD’s production CSG ray tracer, approximates indirect shading with an ambient occlusion pass, enabled with a nonzero ambient factor and a sample count:

rt -A1.1 -c "set ambSamples=128" -s512 -a35 -e25 -o out.png model.g object

The panels below compare, for the same view, ADRT’s path tracer against rt with full lighting only and rt with ambient occlusion added. ADRT’s path tracer resolves the sky illumination and soft inter-surface shadowing in a single physically-based pass; `rt’s ambient occlusion darkens cavities on top of its direct lighting model.

Table 1. Toy jeep — adrt -m path / rt full lighting / rt ambient occlusion

adrt path

rt plain

rt AO

adrt path traced

rt full lighting

rt ambient occlusion

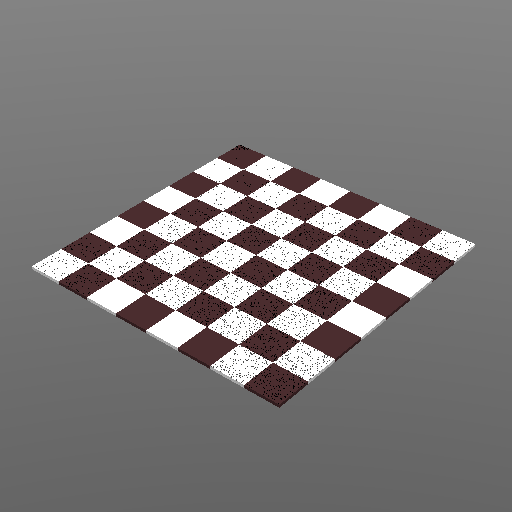

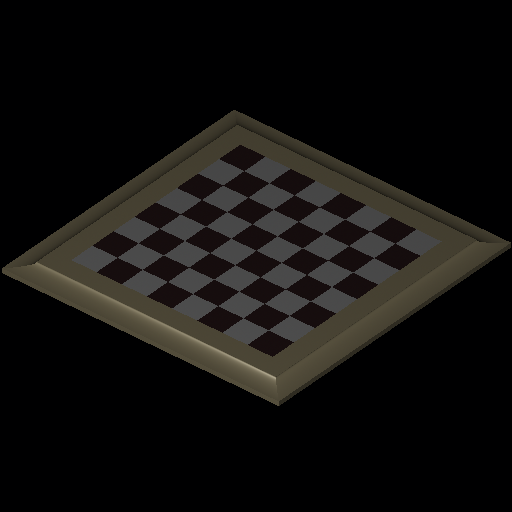

Table 2. Chessboard — adrt -m path / rt full lighting / rt ambient occlusion

adrt path

rt plain

rt AO

adrt path traced

rt full lighting

rt ambient occlusion

Global illumination: the Cornell box

The Cornell box is the classic test of indirect lighting: a closed room lit only by a small ceiling panel. ADRT detects the emissive light region and lets the path tracer bounce that light around the room. Compared with the direct-only phong shader, the path-traced image adds the glowing light source, soft shadows beneath the blocks, and color bleeding — the red floor and blue walls tint the neighboring surfaces.

Table 3. Cornell box — adrt -m path (global illumination) versus adrt -m phong (direct only)

adrt path

adrt phong

Path traced: area light, soft shadows, color bleeding

Phong: direct lighting only, no indirect light

Complex CSG: facetize first

ADRT tessellates as it loads, but a few heavily-booleaned models do not survive on-the-fly NMG evaluation — the sample castle, whose whole structure is one region unioning dozens of instanced solids, is one. rt traces it natively as CSG, but for ADRT the robust path is to convert it to a triangle mesh once with the Manifold-based facetizer, then render the mesh:

# in mged, on a working copy of the database
facetize -o castle_bot all.g/castle

adrt -s 512 -H 256 -a 135 -e 30 -o castle.png castle.g castle_bot

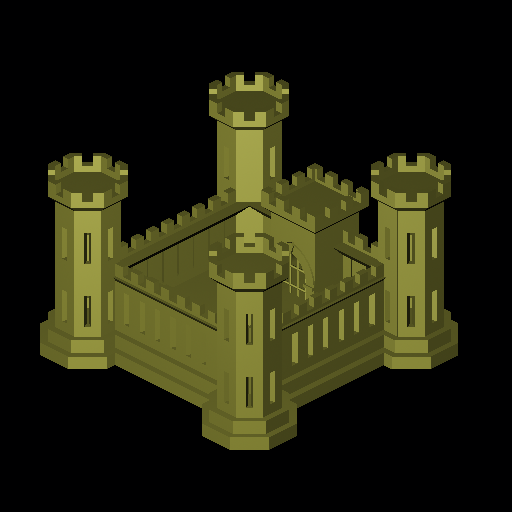

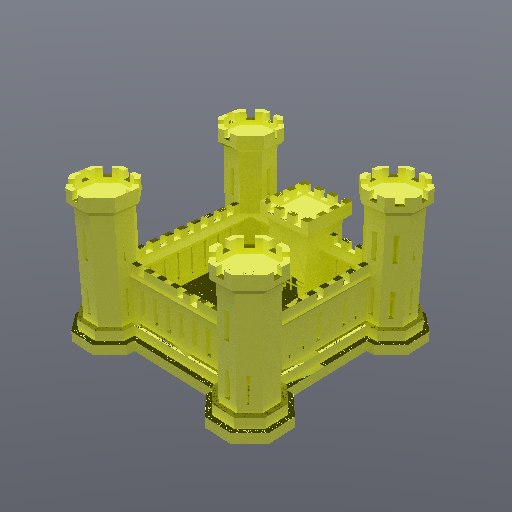

Table 4. Castle — facetized then adrt -m path / rt full lighting / rt ambient occlusion

adrt path

rt plain

rt AO

adrt path traced

rt full lighting

rt ambient occlusion

Other shading modes

The same adrt invocation reaches librender’s analysis shaders through -m, useful for inspecting form and orientation without lighting:

phong

normal

depth

-m phong direct lighting

-m normal surface normals

-m depth camera depth

Notes and limitations

  • The path tracer is a straightforward forward tracer with no next-event estimation or denoising. Raise -H to reduce Monte-Carlo noise; large perfectly-diffuse, high-albedo surfaces are the noisiest.

  • Materials are approximated: regions render as opaque diffuse surfaces using their region color, light/emitter regions become area lights, and specular/refractive shaders are not yet modeled.

  • Only triangle-representable geometry contributes; non-tessellatable solids (for example infinite half-spaces) are skipped.

Note

The images in this article are a committed snapshot. Developers can regenerate them from the built tools by configuring with -DBRLCAD_GENERATE_ADRT_GALLERY=ON and building the adrt-pathtrace-snapshot target.
